Product advantages

• Integrated with the filtered planar far UVC lamp module emitting pure key wavelength of 222nm.

• The far UVC light is proved scientifically to inactivate air and surface viruses, bacteria and other pathogens without harm to humans and animals.

• The luminaire is designed to operate continuously or intermittently at user’s option and meets the guideline of UV exposure limit of ACGIH in occupied area to achieve real-time and sustainable disinfection.

• Instant start to reach peak performance in seconds.

• Made of mercury free components meeting Rohs requirement.

• No secondary residue, chemical free.

• Good for wide ambient temperature range of -10 to +50℃.

• Three operation modes at user’s option available: hybrid UV sanitizing & illumination, UV only, or illumination only.

• Integrated with Google-searchable APP controls of on & off, group, timing, dimming, etc.

Product features

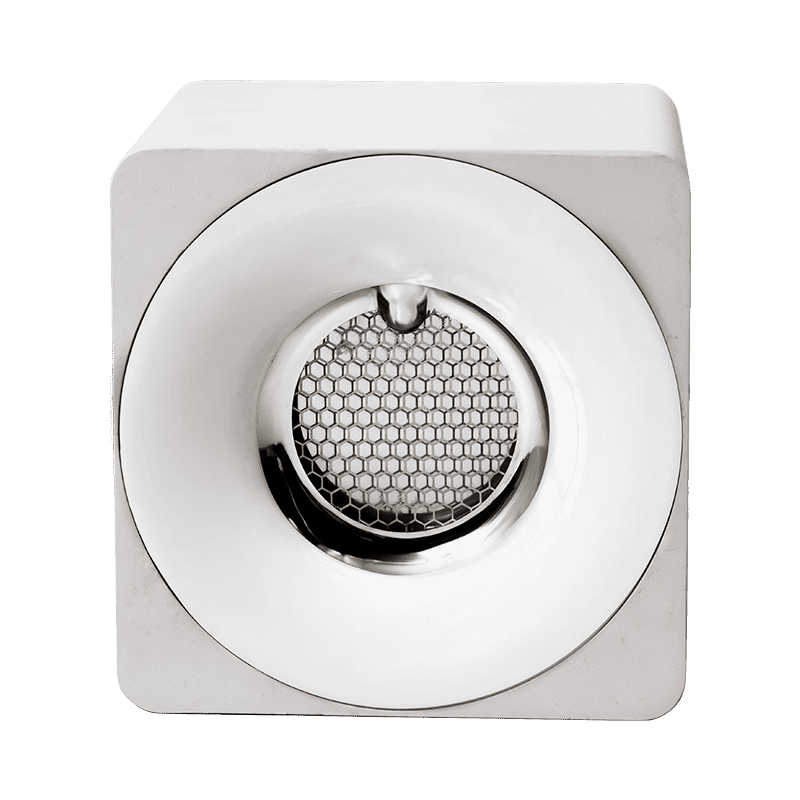

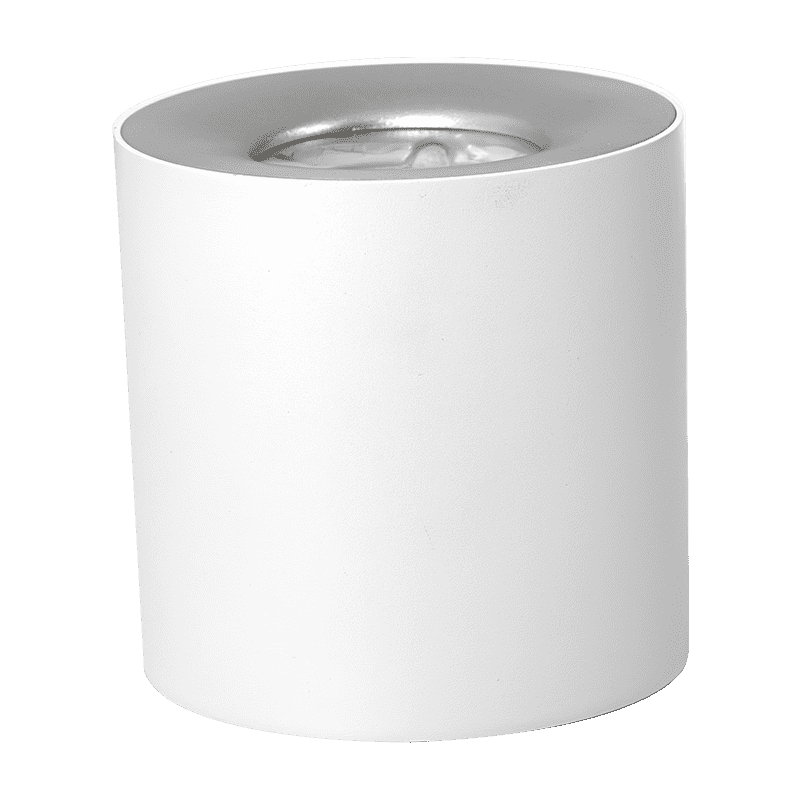

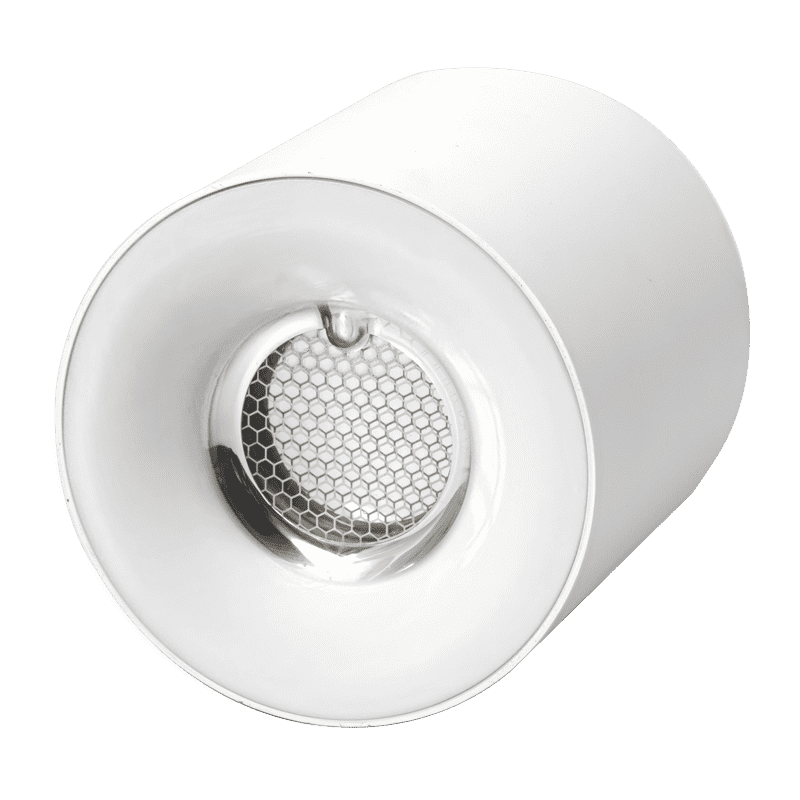

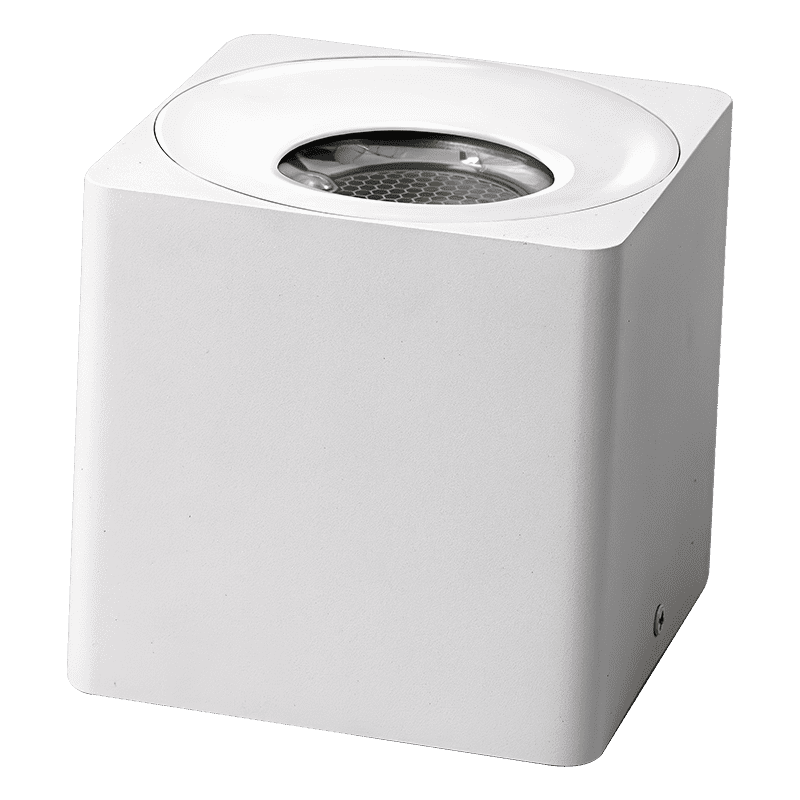

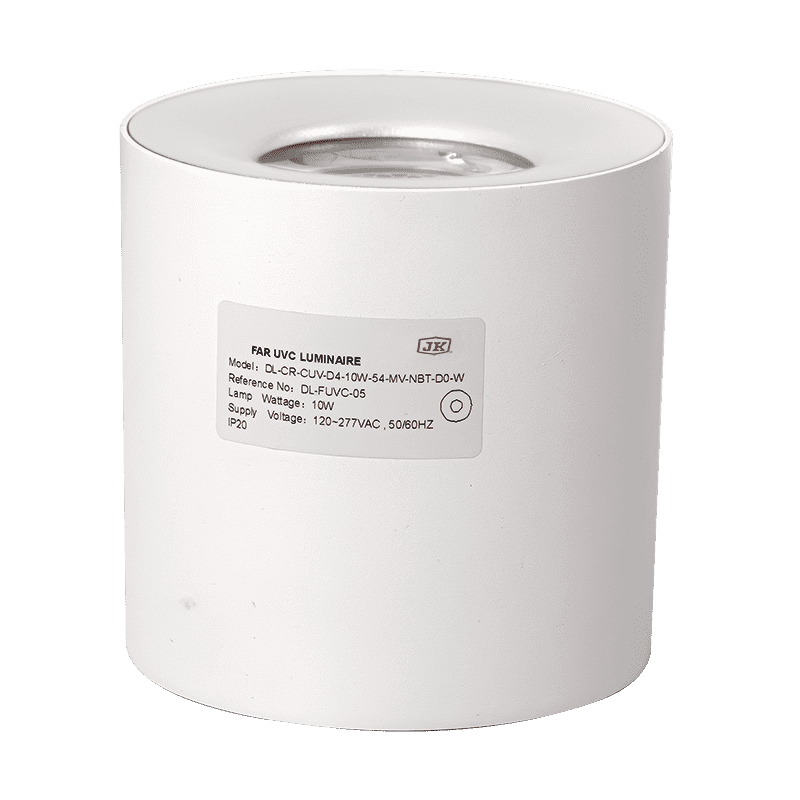

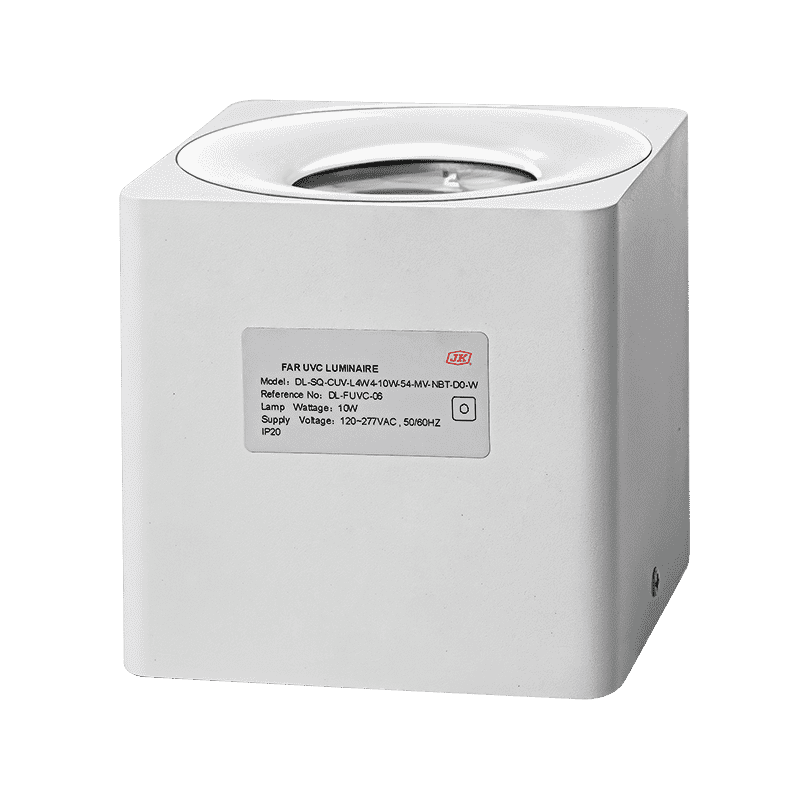

• Structure: Die-cast aluminum housing with streamlined  shape with powder coating in black, white, gray or other custom colors.

• Fully integration: The far UV lamp, LED chip, ballast and controls are integrated in the luminaire.

• State-of-Art UV technologies: The far UVC lamp is the cutting-edge technical innovation in germicidal technology and the control is made of most up-to-date tiny, but sophisticated and highly efficient chip allowing all controls in one chip.

• Enhanced UV irradiation: Imported highly reflector with lighting beam of 120° is used to enhance the output of UV light.

• UV operation status indicator: A red dot is visible at the middle of lamp at UV operation.

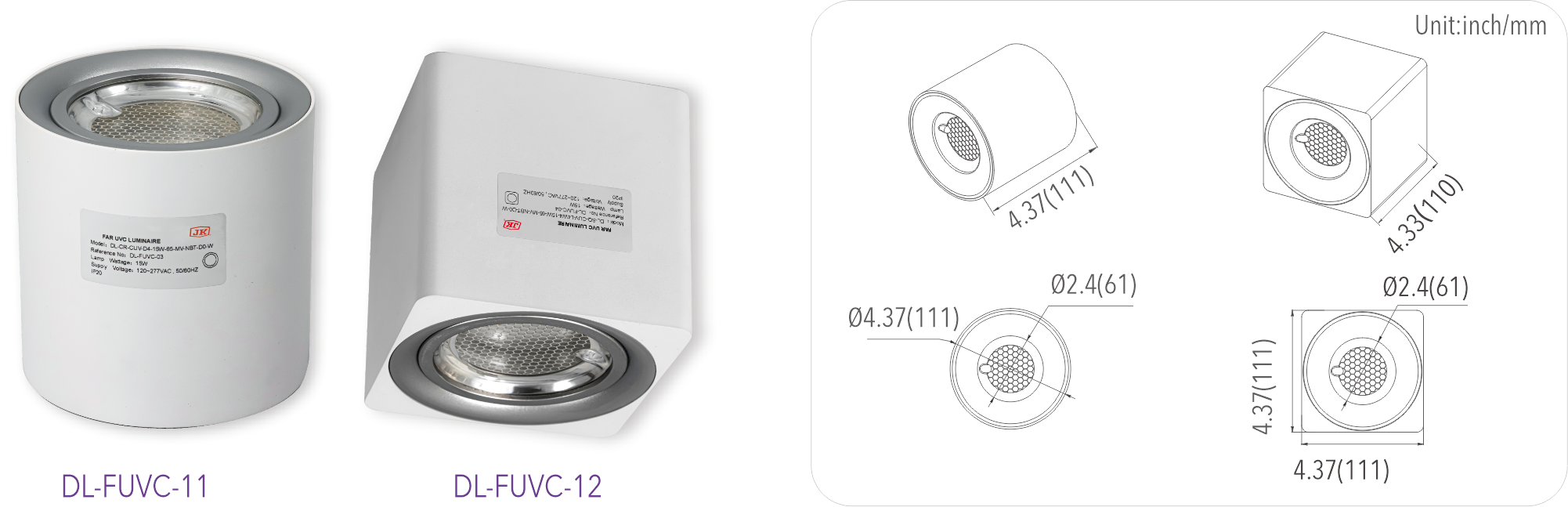

• Compact and light weight: The standard 4” luminaire with weight of less than 1 kg (2.2 pounds) suitable for any indoor areas without interfering the original design style for new construction or renovation.

• Optional installations: Surface mounting, pendant mounting.

Application

• Effective against viruses, bacteria and other pathogens in air and on surface

• Ideal for non residential occupied and high traffic areas including medical and healthcare settings in hospitals, clinics, elderly home, clubs, children’s home, public settings in schools, library, bar, restaurant, hotel, port, transit, office, conference room, toilet, etc. and industrial settings of food process, food preparation, labs.

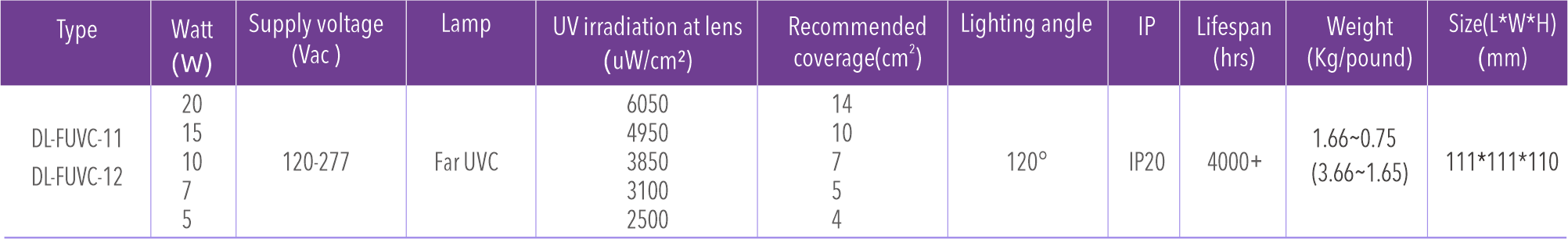

Specifications

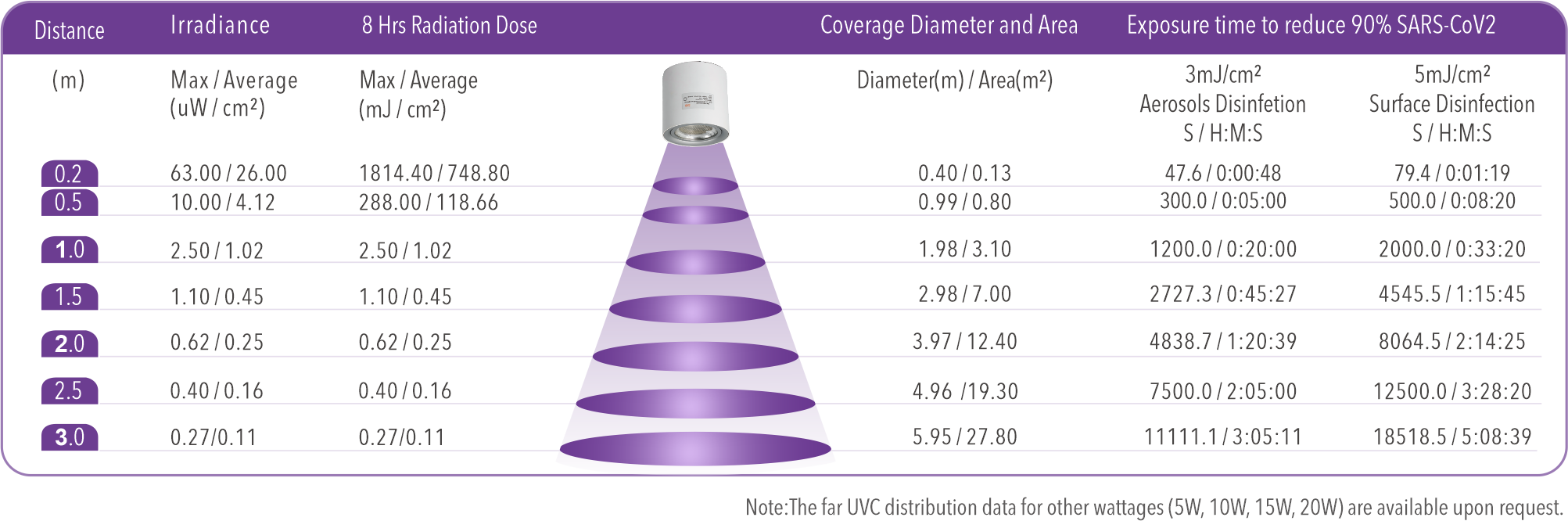

Far UVC Distribution(7W 54x8 mm Plannar DBD 222nm Coverage Diameter and Area vs Irradiance vs Radiation Dose)
